Product Details:
|
| Interfaces: | USB+Bluetooth | Print Method: | Direct Thermal Line |
|---|---|---|---|
| Print Speed: | 60mm/s | Resolution: | 203dpi |
| Available Rang Of Paper Width: | 20-80mm | Roll Diameter: | φ≤50mm |
| Paper Thickness: | 0.06-0.20 Mm | Printer Head Life: | 50KM |
| SDK: | IOS / Android | Charging Method: | AC 100-240v 50\60Hz 0.4A DC 5V 1A |
| Battery: | DC7.4V/ 2600 MAh Rechargeable Lithium Battery | Print Comand: | Support ESC/POS Compatible, CPCL Instruction Set |
| High Light: | AC 100V Thermal Label Printer,60mm/s Thermal Label Printer,CPCL Portable Bluetooth Printer |
||

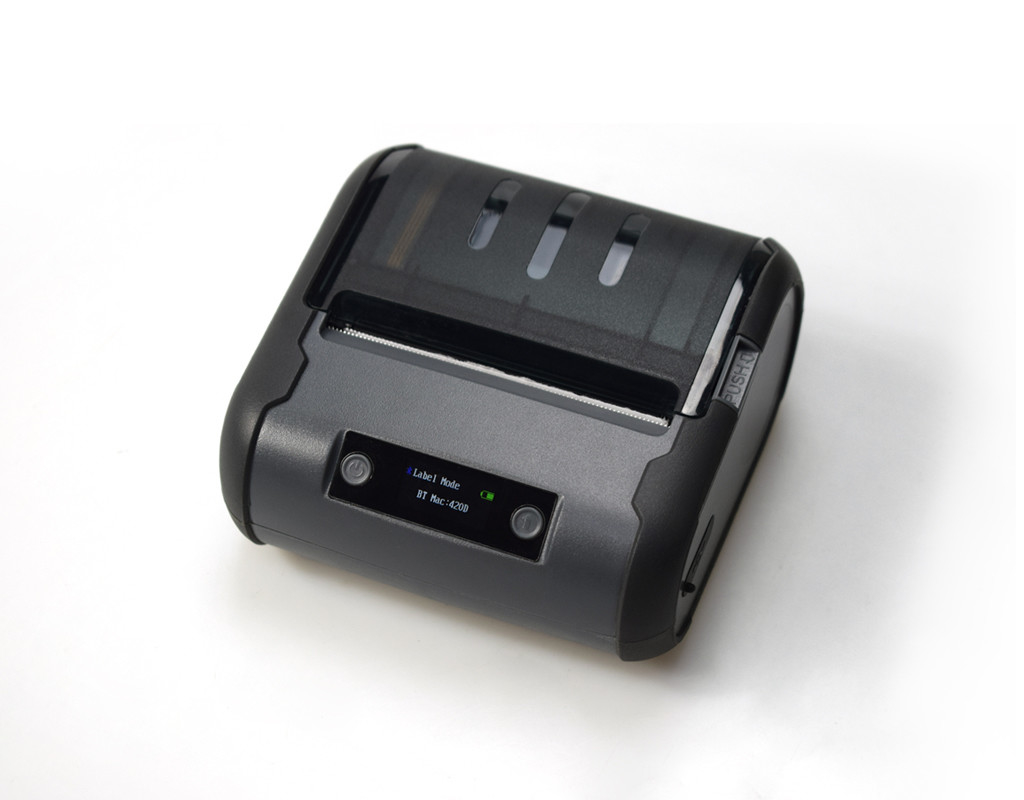

Description of Mini Label Printer
1. Paper easy-loading structure, convenient in using
2. Low noise, high-speed printing
3. Large battery capacity, 2600mAh
4. Support USB and Bluetooth communication
5. Support thermal receipt/label paper printing
Specifications of Mini Label Printer
| Specifications of Printer | ||||
| Product Model | POS-8007 | |||
| Print Comand | Support ESC/POS compatible, CPCL instruction set | |||
| Print Method | Thermal Line Printing | |||
| Pirnt Speed | 60mm/sec (max) | |||
| Print Resolution | 203DPI (8dot/mm) | |||
| No. of Total Dots | 384 dots/Line | |||
| Paper Cut | Manual Tear | |||
| TPH Life | 50km (25% printing density or less) or per dot: 100 million pulses | |||
| Inner Code | ASCII font library (8x16, 12x24, 16x32, 24x48), GBK (16x16), GB1830 (24X24) | |||
| Print Content | English, Numbers, Various symbols, Chinese characters, Graphics, Curves, Pre-stored icons | |||
| One-dimensional code | UPC / UPC-E / CODE39 / EAN-13 / EAN-8 / CODABAR / CODE128 / CODE93 / CODE128 / ITF | |||
| Two-dimensional code | QR Code, PDF417 | |||
| Black mark detection | Yes | |||
| Label detection | Yes | |||
| Status indication TFT display | Communication mode, Printing, Out of paper, Out of power, Sleep mode, Paper type | |||
| Alarm function | Paper out detection, Low battery detection | |||
| Paper | ||||
| Type | Roll Paper | |||
| Available Rang of Paper Width | 20-80mm | |||
| Roll Diameter | φ≤50mm | |||
| Paper Thickness | 0.06-0.20mm | |||
| Electrical | ||||
| Battery |
7.4V DC/2600mAh; (rechargeable lithium battery/nickel-metal hydride battery) |
|||
| Charging mode | AC 100-240v 5060Hz 0.4A DC 5V 1A | |||
| Physical | ||||
| Dimension | 11.5*11*5.8cm | |||
| Unit Weight | 350g | |||
| Color | Black | |||
| Environmental | ||||
| Temperature | Working: -10 to 50 Degrees | |||
| Humidity | Working: 10%-90% | |||
| Mechanical Noise | less than 60dB (A weighted RMS) | |||
| Accessories | ||||
| USB Cable | 1 Piece | |||
| Adapter | 1 Piece | |||
Application of Mini Label Printer
1. portable instrumentation
2. mobile office / mobile logistics systems
3. Supermarket shelf label
4. Drug labels
5. Jewelry tags
6. Clothing label
7. Food labels
8. Tobacco and alcohol shelf labels etc.
