Product Details:
|
| Print Method: | Direct Line Thermal | Interfaces: | USB / LAN / Bluetooth (optional) |
|---|---|---|---|
| Print Comand: | ESC / POS Command | Print Speed: | 220mm/s |
| Resolution: | 203DPI (8dot/mm) | TPH Reliability: | 100km |
| Auto Cutter: | Partial | Paper Width: | 79.5±0.5mm / φ 80 Mm |
| Print Width: | 72mm | Power: | Input：AC 110V/220V, 50～60Hz ; Output：DC 24V/2.5A |
| High Light: | POS Command 80mm Receipt Printer,80mm POS Thermal Printer,3 Inch POS Thermal Printer |
||

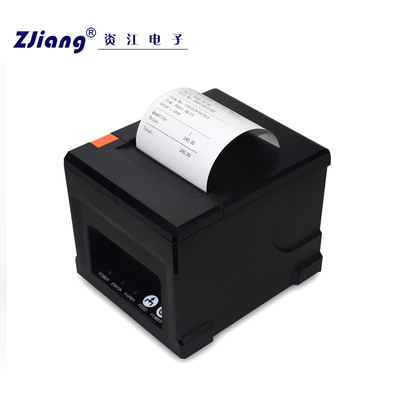

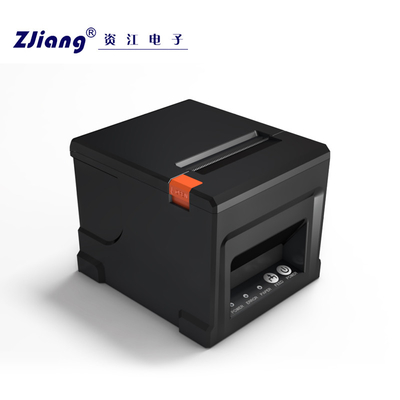

Description of 80mm Thermal Printer
1. Direct Line Thermal Printing
2. 203DPI (8dot/mm)
3. USB / LAN / Bluetooth (optional)
4. TPH Reliability about 100km
5. Support downloading and printing logo
Specifications of 80mm Thermal Printer
3 Inch Black Color 80mm Direct Kiosk Receipt Kitchen POS Thermal Printer for Supermarket Restaurant
| Printer Specifications | |
| Product Model | POS-8360 |
|
Print Method
|
Direct Line Thermal |
|
Interfaces
|
USB / LAN / Bluetooth (optional) |
|
Print Comand
|
ESC / POS command |
|
Print Speed
|
220mm/s |
|
Resolution
|
203DPI (8dot/mm) |
|
TPH Reliability
|
100km |
|
Auto Cutter
|
Partial |
|
Cutter Life
|
1.5 million cuts |
|
Logo
|
support downloading and printing logo |
|
Line Spacing
|
3.75mm (Adjustable by commands) |
|
Extension Character Sheet
|
PC437(Standard Europe),Katakana,PC850(Multilingual),PC860(Portuguese),PC863(Canadian),PC865(Nordic),West Europe,Greek,Hebrew,East Europe,Iran,WPC1252,PC866(Cyrillic#2),PC852(Latin2),PC858,IranII,Latvian,Arabic,Thai,PT151(1251) |
|
Character Size
|
ANK,Font A:1.5×3.0mm(12×24 dots) Font B:1.1×2.1mm(9×17 dots) Chinese,Traditional Chinese:3.0×3.0mm(24×24 dots) |
|
Supported Code:
|
1D: UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODE39 / ITF / CODABAR /CODE93 / CODE128 2D: QR CODE,PDF417 |
|
Input Buffer
|
2048K bytes |
|
NV Flash
|
256K bytes |
|
Driver
|
Win2003 / WinXP / Win7 / WIN8 / WIN10 / Linux ; Support IOS / Android |
|
Power
|
Input:AC 110V/220V, 50～60Hz ; Output:DC 24V/2.5A |
|
Paper
|
|
|
Paper Types
|
Thermal Roll Paper |
|
Paper Width
|
79.5±0.5mm / φ 80 mm |
|
Print Width
|
72mm |
|
Paper Thickness
|
0.06-0.08 mm |
|
Package
|
|
|
Printer Dimension
|
16*13.5*12.15 CM |
|
Printer N.W.
|
0.72 kg |
|
Package
|
1pc with accessories/Box, 12 boxes/CTN |
|
Accessories
|
Manual, USB Cable, Power Adapter, Paper Roll |
|
Box Dimension
|
19.8*18.4*13.9 CM |
|
Box G.W.
|
1.1 Kgs |
|
CTN Dimension
|
61.4*38.8*29.8 CM |
|
CTN G.W.
|
14 Kgs |
|
Environmental Requirements
|
|
|
Work Environment
|
Temperature (0～45℃) humidity(10～80%) |
|
Storage Environment
|
Temperature(-10～60℃) humidity(10～90%) |
|
Mechanical Noise
|
less than 60dB |
Features of 80mm Thermal Printer
1. Support multi languages
2. User-friendly Design
3. Low cost and high-quality thermal printing
4.Cash drawer drive supported
5. Easy paper-roll installation, Easy maintenance and Rational structure
6. Low-power waste, low-run cost.
7. Characters can be amplified,printed in bold optionally,and line spacing printing can be adjusted
8. Support different density bitmap graphics printing
9. High-speed printing using embedded soft font for all interfaces.
10. Compatible with ESC/POS print instruction set, optional columns and font(adjusted by DIP switch)
Application of 80mm Thermal Printer
1. Logistic
2. Resturant
3. Supermarket
4. Cafe Shop
5. Apparrel etc.
Advantages Of 80mm Thermal Printer
Why choose us:
· Focused on thermal printers for 15 years
· Complete product categories
· Professional experienced R & D team
· Professional marketing & salesteam
· OEM & ODM service
· ISO 9001 certificated production management
Our Services
1. Your inquiry will be replied within 24 hours.
2. Well-trained & experienced sales can reply your inquiries in English.
3. OEM are highly welcomed.
4. Our cooperating shipping agent will offer you the best shipping price.
5. The order will be produced exactly according to order details and proofed samples.
6. Your business relationship with us will be confidential to any third party.
7. Our staffs are ready to give our sincere service to you.
FAQ
Q1: Are you a factory or trading company?
----- We are a factory,Our company mainly sells Pos Thermal Printers....
Q2: What's your MOQ?
-----No,MOQ,we accept sample order.
Q3: What's your warranty policy?
----- 1 year free maintenance.
Q4: What's your payment terms?
------ We accept T/T in advance, Western Union or alibaba trade assurance.
Q5: What's the lead time for mass order?
------ Normally, it takes about 20-35 days, depends on the order quantity.
Q6: How will you control the printer's quality?
------ We fully tested every components and procedures,we have QC persons in every production procedures.
