Product Details:
|
| Type: | Thermal Printer | Max. Resolution: | 203 Dpi(8 Dot/mm) |
|---|---|---|---|
| Model Number: | ZJ-8330 POS-8330 | Print Width: | Max 80mm |
| Printing Method: | Thermal Line Printing | Style: | Black And White |
| High Light: | Mini bluetooth bill printer,Thermal bluetooth bill printer,80mm usb receipt printer |
||

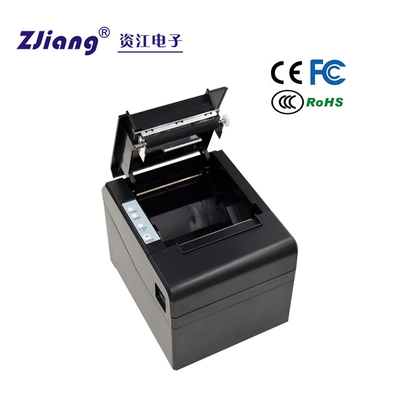

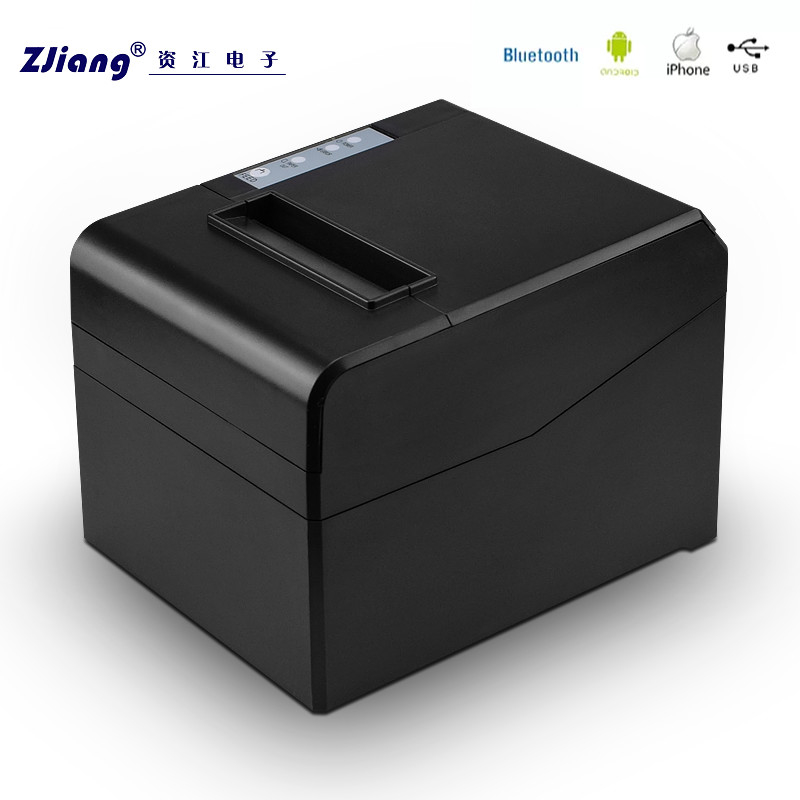

Mini 80mm Bluetooth Bill Printer Direct Thermal USB Receipt Printer
About this item
| Interfaces | USB / USB+COM+LAN / USB+LAN / USB+COM / USB+BT / USB+WIFI (Optional) | |||
| Print Comand | ESC/POS | |||
| Print Method | Thermal Line Printing | |||
| Pirnt Speed | 220mm/sec | |||
| No. of Total Dots | 576 dots/line | |||
| Auto Paper Cutter | Full or Partial cut | |||
| Column Number | 80mm paper: Font A - 42 columns or 48 columns/Font B - 56 columns or 64 columns/ Chinese,traditional Chinese - 21 columns or 24 columns |
|||
| Character Size | ANK,Font A:1.5×3.0mm(12×24 dots) Font B:1.1×2.1mm(9×17 dots) Chinese,traditional Chinese:3.0×3.0mm(24×24 dots) |
|||
| Input Buffer | 2048K bytes | |||
| NV Flash | 256K bytes | |||
| Compatible OS | Win9X/Win2000//Win2003/Win Vista/ Win 7/Win XP /Win 8/Win 8.1/Win 10/Linux/Android/IOS Compatible with ESPON,SAMSUNG |
|||
| Paper | ||||
| Type | Roll Paper | |||
| Width | 79.5±0.5mm×φ80mm | |||
| Effective Print Width | 72mm | |||
| Line Spacing | 3.75mm (Adjustable by commands) | |||
| Roll Diameter | 83mm | |||
| Paper Thickness | 0.06-0.08mm | |||
| Electrical | ||||
| Adapter Voltage | Input:AC 110V/220V, 50～60Hz ; Output:DC 24V/2.5A | |||
| Cash Drawer Control | 12V/1A | |||
| Printer Cutter Life | 1.5 million cuts | |||
| Print Head Life | 100km | |||
| Physical | ||||
| Dimension | 18.6*14.5*13.6cm | |||
| Unit Weight | 1.30kgs | |||
| Pieces Per CTN | 8 Pieces | |||
| CTN Dimension | 51 x 49 x 37cm | |||
| Carton Weight | 16.50kgs | |||
Application scenarios:
Q: Are you manufacturer or trading company?
A: We are leading manufacturer of thermal printer including receipt printer,
label printer and mobile printer with 15 years experience, factory located
in Shenzhen City, Guangdong province.
Q: How do you ensure high-quality products?
A: We are a company with IS09001:2015 international QMS certification. Our products have obtained CCC, CE, FCC, RoHS, KC, SAA, BIS, BSMI certifications.
Q: How long will the warranty be ?
A: We support 12 months for all of our thermal printer
Q: What's the lead time?
A: All products can be ordered directly, we will ship them within 2-3 working days.Please contact customer service for more than 1000 pieces
Q: Can you send samples for confirmation? Are they free?
A: Samples will be offered, but no free.
